AT-AM164S-01E
AT-AM164S-01E
Product name: 1.64inch AMOLED
Model No.: AT-AM164S-01E
Display COLOR: 16.7M
Viewing Direction: All
Interface: QSPI
Controller: ICNA3311/ZT2717
Operating temperature: -20~+70℃
Brightness(cd/m²): 500cd/m²
Touch Screen: With touch screen
Share to:
AT-AM164S-01E is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | AMOLED | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -40~+80 | ℃ | |

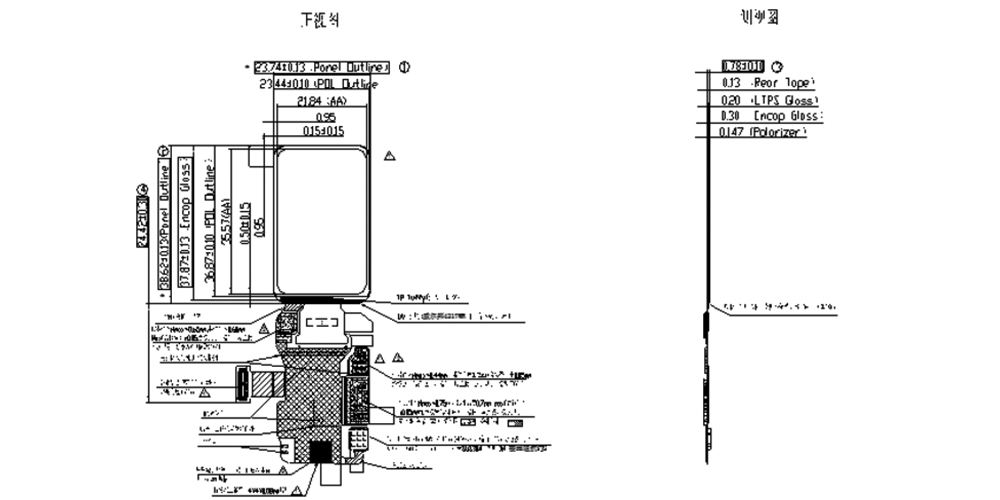

| Module size | 23.74*38.62 | mm | |
| Active Area(W×H) | 21.84*35.568 | mm | |
| Number of Dots | 280*456 | dots | |
| Controller | ICNA3311/ZT2717 | – | |
| Brightness | 500 | cd/m² | |
| Interface | QSPI | – | |
| Connector | 30 | pins | customizable |
| Size | 1.64 |
| Resolution | 289×456 |
| COLOR | Full Color |
| A.A.(mm) | 21.84×35.568 |
| Outline (mm) | 23.74×38.62 |
| Interface | spi |
| IC | ICNA3311 |
