AT-PM150C-01R
AT-PM150C-01R
Product name: 1.50inch PMOLED
Model No.: AT-PM150C-01R
Display COLOR: WHITE (or YELLOW)
Viewing Direction: 160°
Interface: MCU
Controller: SSD1327
Operating temperature: -40~+70℃
Brightness(cd/m²): 90cd/m²
Touch Screen: option with touch screen
Share to:
AT-PM150C-01R is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | WHITE (or YELLOW) | ||
| Viewing Direction | 160° | O’Clock | |
| Operating temperature | -40~+70℃ | ℃ | |
| Storage temperature | -40~+80℃ | ℃ | |

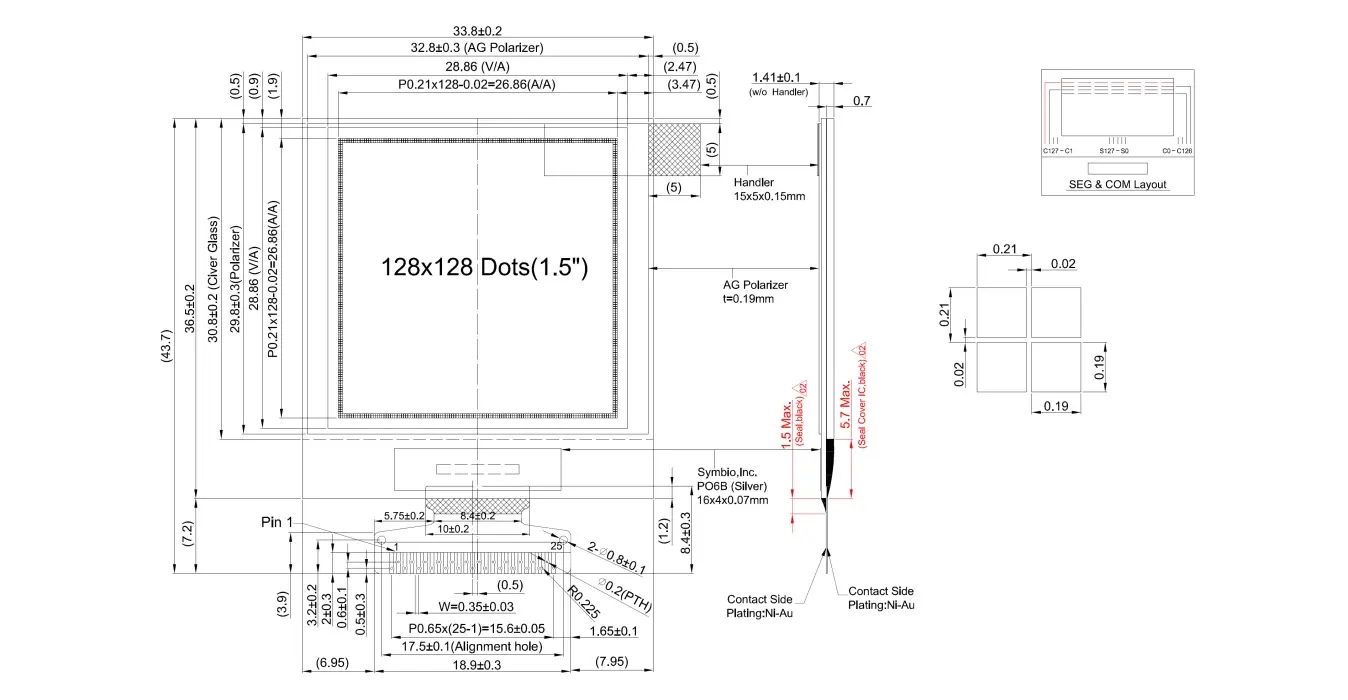

| Module size | 33.8(W)x43.7(H)x1.41(T) | mm | |
| Active Area(W×H) | 26.86(W)X26.86(H) | mm | |
| Number of Dots | 128 x128 | dots | |
| Controller | SSD1327 | – | |
| Brightness | 90 | cd/m² | |
| Interface | MCU | – | |
| Connector | 24 | pins | customizable |
| Size | 1.5 |
| Resolution | 128×128 |
| A.A.(mm) | 26.86×26.86 |
| Outline (mm) | 33.8×36.5 |
| Interface | MCU |
| IC | SSD1327 |
| COLOR | W |
