AT-PM096S-06X
AT-PM096S-06X
Product name: 0.96inch PMOLED
Model No.: AT-PM096S-06X
Display COLOR： Monochrome (White)
Viewing Direction： All
Interface： 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C
Controller： SSD1315
Operating temperature： -40~+85℃
Brightness(cd/m²)： 110cd/m²
Touch Screen： With/without touch screen
Share to:

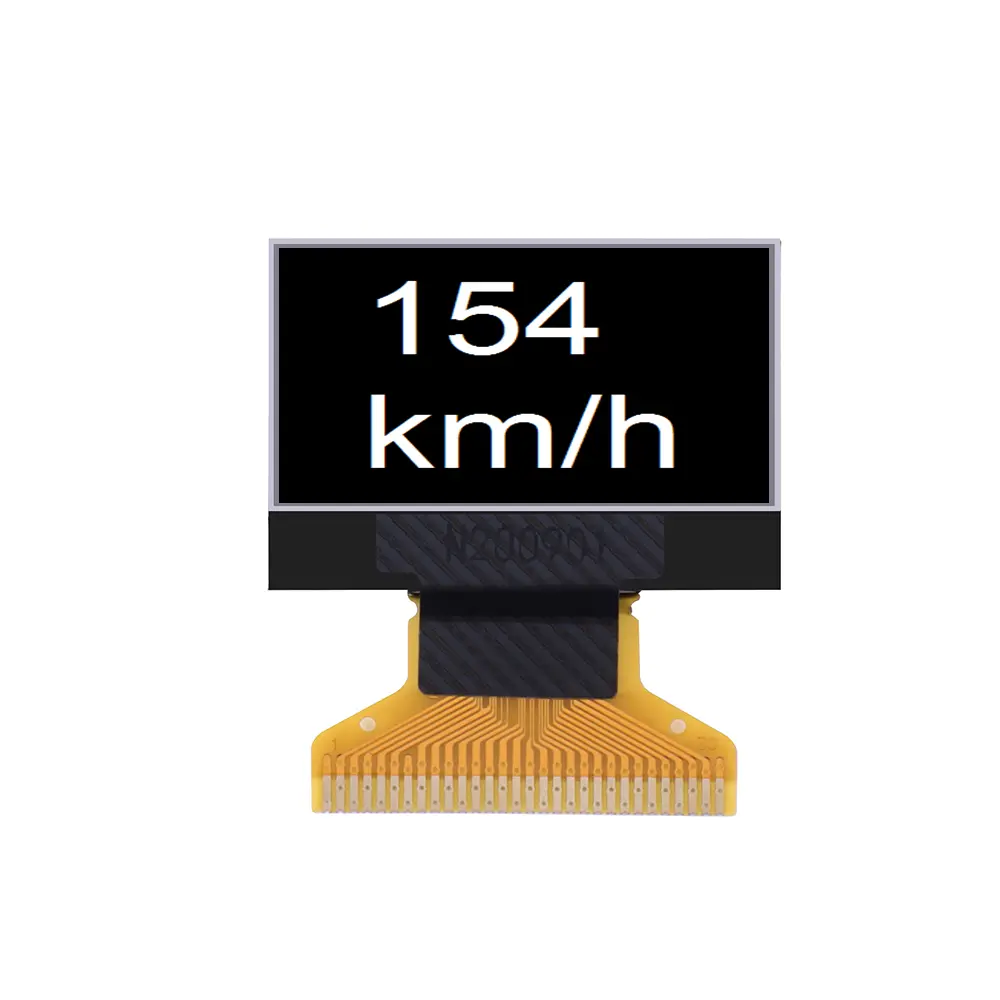

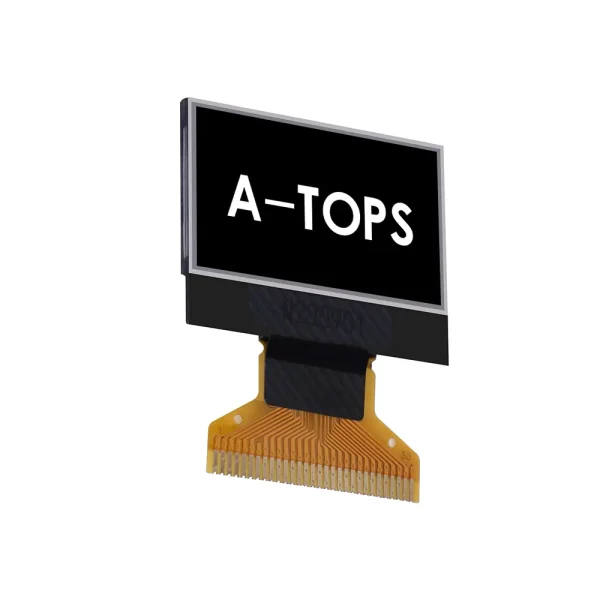

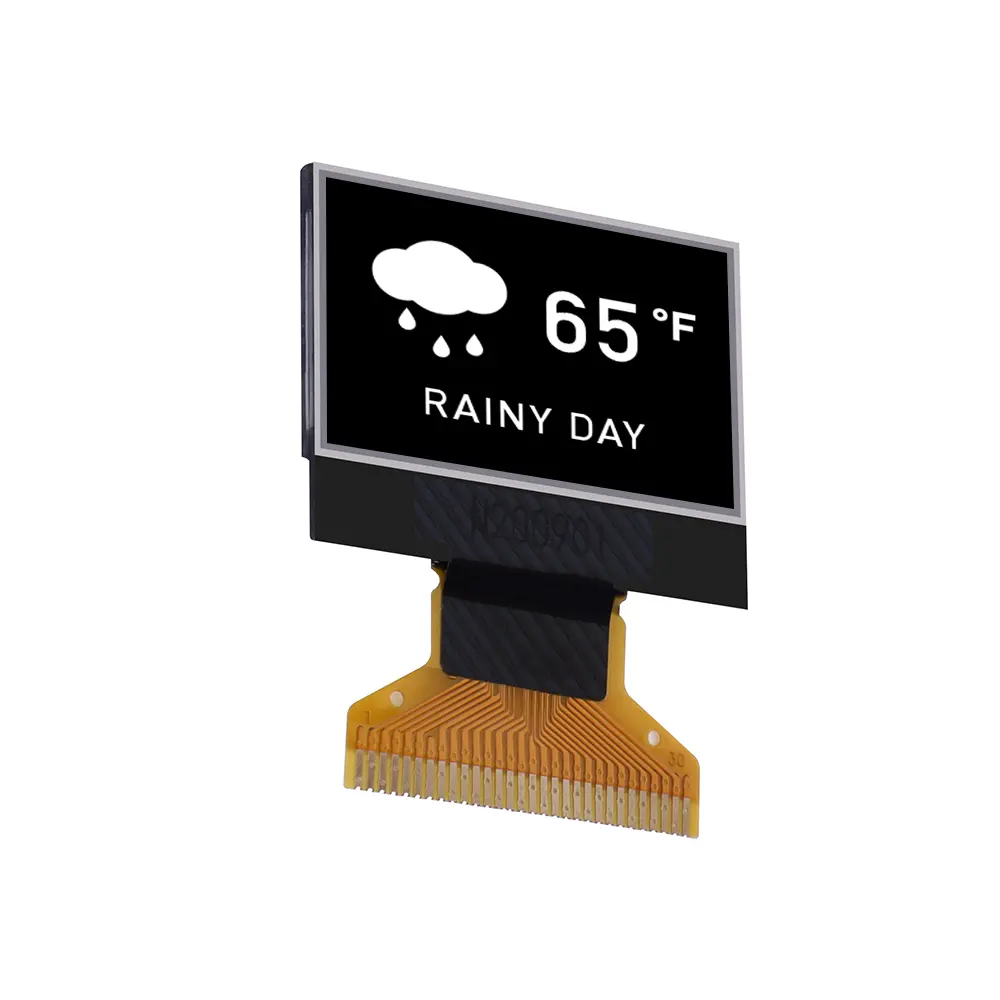

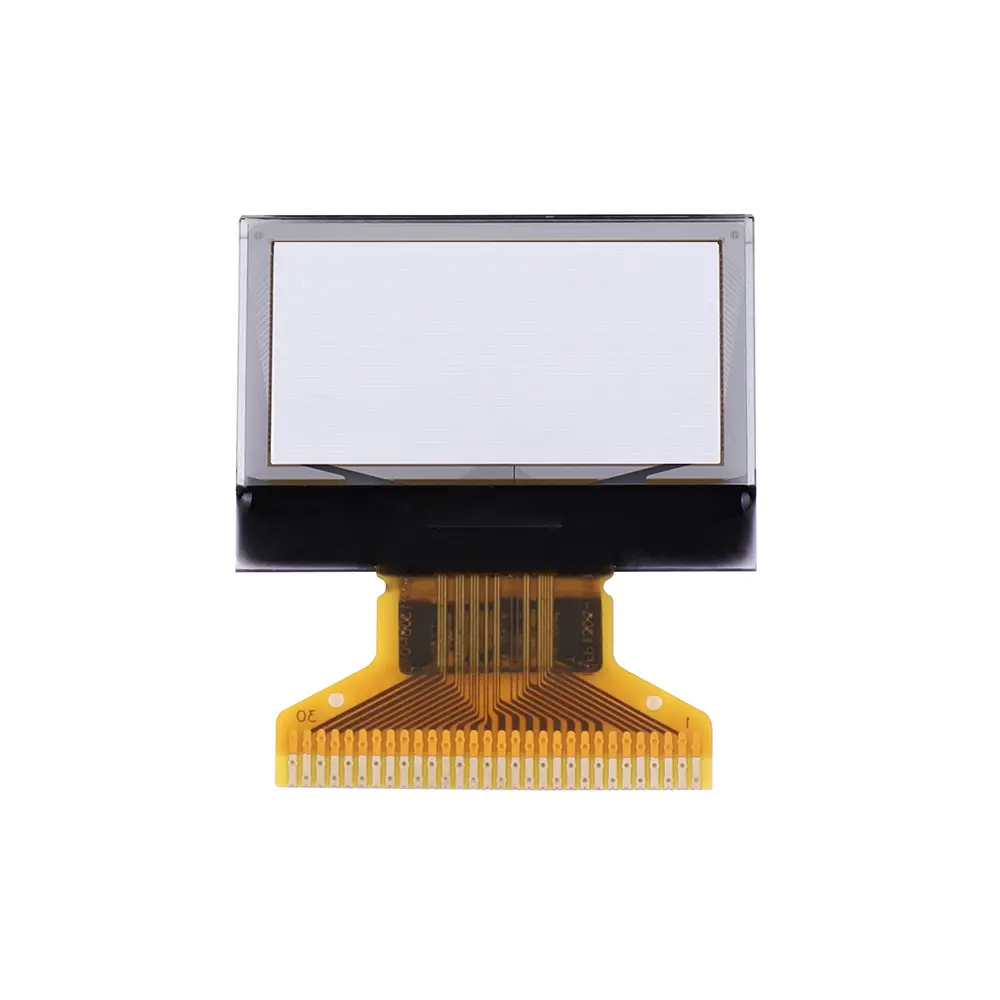

AT-PM096S-06X is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | Monochrome (White) | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+85℃ | ℃ | |
| Storage temperature | -40~+85℃ | ℃ | |

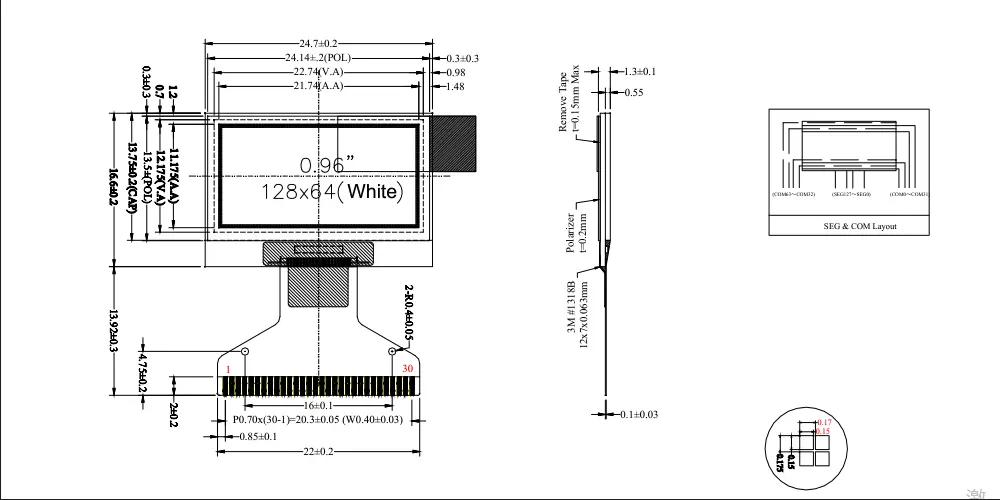

| Module size | 24.7X16.6X1.3 | mm | |
| Active Area(W×H) | 21.74(W)X11.175(H) | mm | |
| Number of Dots | 128X64 | dots | |
| Controller | SSD1315 | – | |
| Brightness | 110 | cd/m² | |
| Interface | 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C | – | |
| Connector | 30 | pins | customizable |
| Size | 0.96 |
| Resolution | 128×64 |
| A.A.(mm) | 21.77×11.175 |
| Outline (mm) | 24.7×16.6 |
| Interface | I2C/SPI |
| COLOR | W |
| IC | SSD1315 |
