AT-PM154C-01R
AT-PM154C-01R
Product name: 1.54inch PMOLED
Model No.: AT-PM154C-01R
Display COLOR: WHITE (or YELLOW)
Viewing Direction: All
Interface: MCU
Controller: SPD0301
Operating temperature: -40~+70℃
Brightness(cd/m²): 300cd/m²
Touch Screen: option with touch screen
Share to:

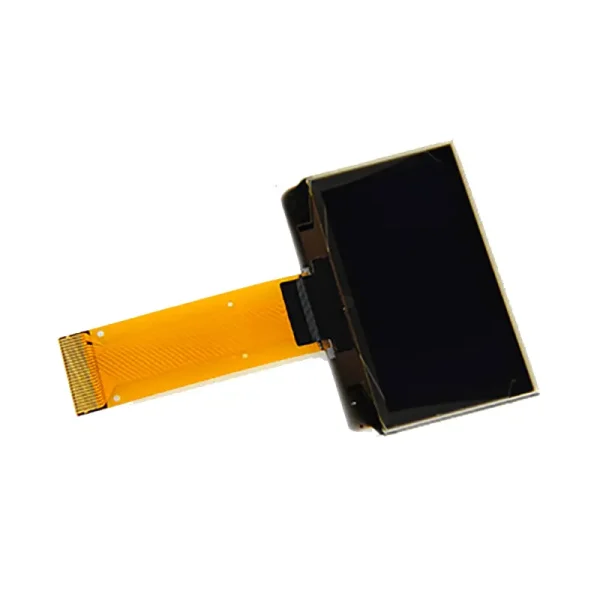

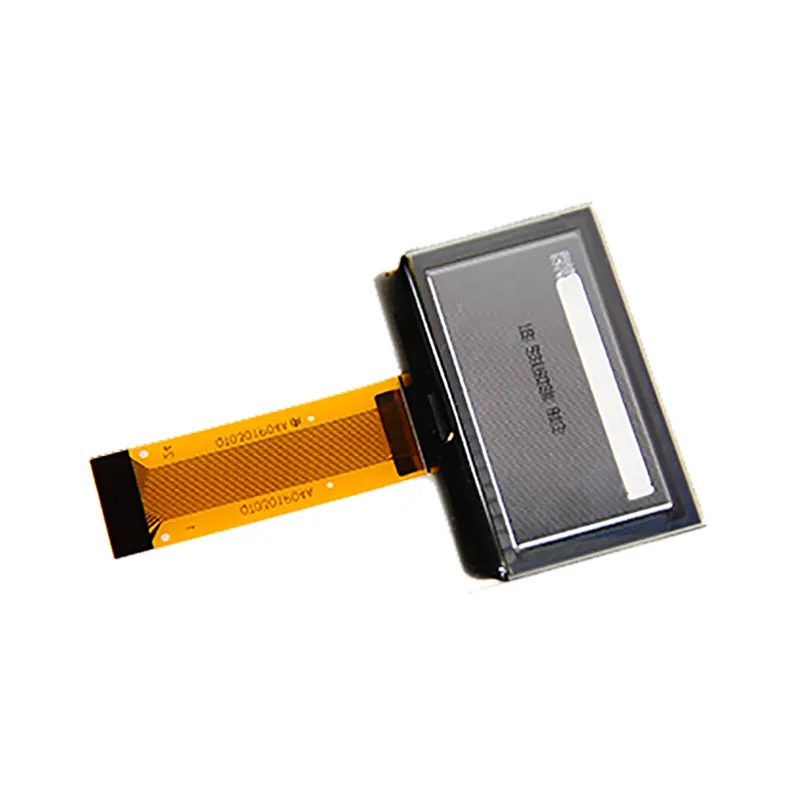

AT-PM154C-01R is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | WHITE (or YELLOW) | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+70℃ | ℃ | |
| Storage temperature | -40~+85℃ | ℃ | |

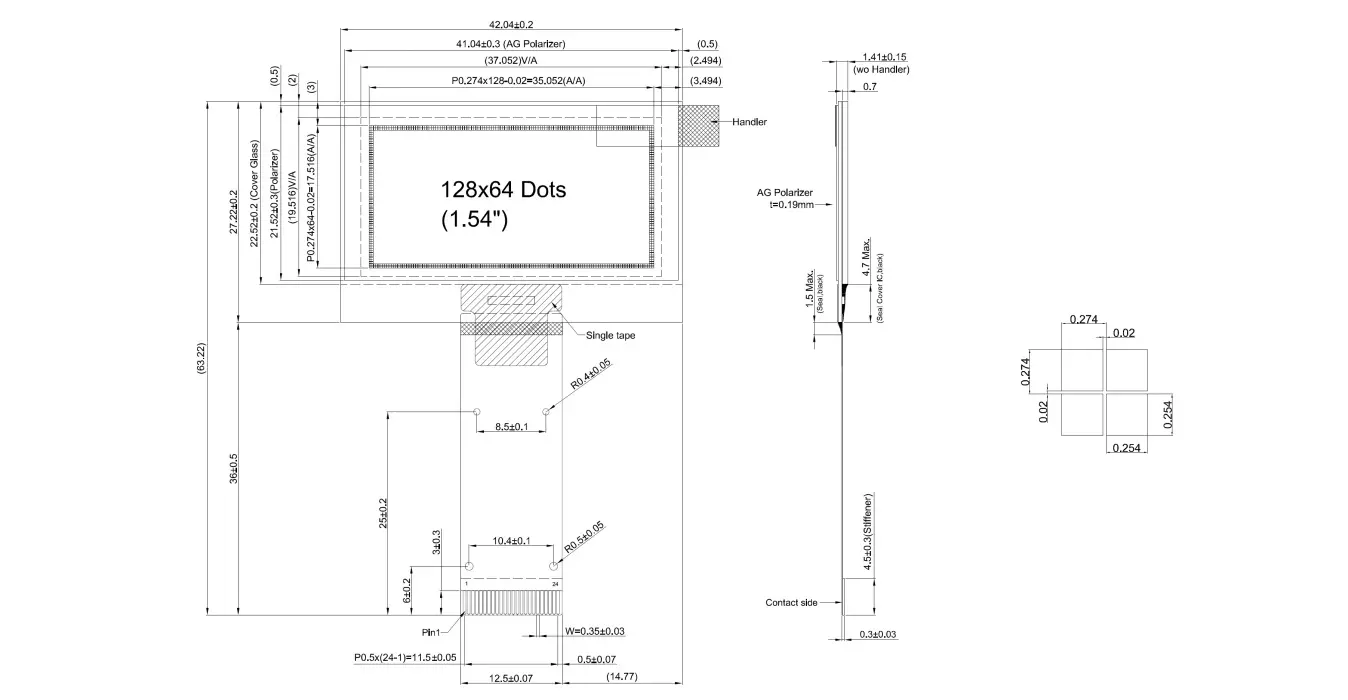

| Module size | 42.04(W)x63.22(H)x1.41(T) | mm | |
| Active Area(W×H) | 35.052(W)x17.516(H) | mm | |
| Number of Dots | 128 x 64 | dots | |
| Controller | SPD0301 | – | |
| Brightness | 130 | cd/m² | |
| Interface | MCU | – | |
| Connector | 24 | pins | customizable |
| Size | 1.54 |
| Resolution | 128×64 |
| A.A.(mm) | 35.052×17.516 |
| Outline (mm) | 42.04×27.22 |
| Interface | MCU |
| COLOR | W |
| IC | SPD0301 |
