AT-PM223C-01R
AT-PM223C-01R
Product name: 2.23inch PMOLED
Model No.: AT-PM223C-01R
Display COLOR: WHITE （or YELLOW)
Viewing Direction: All
Interface: MCU
Controller: SSD1305
Operating temperature: -40~+70℃
Brightness(cd/m²): 180cd/m²
Touch Screen: option with touch screen
Share to:

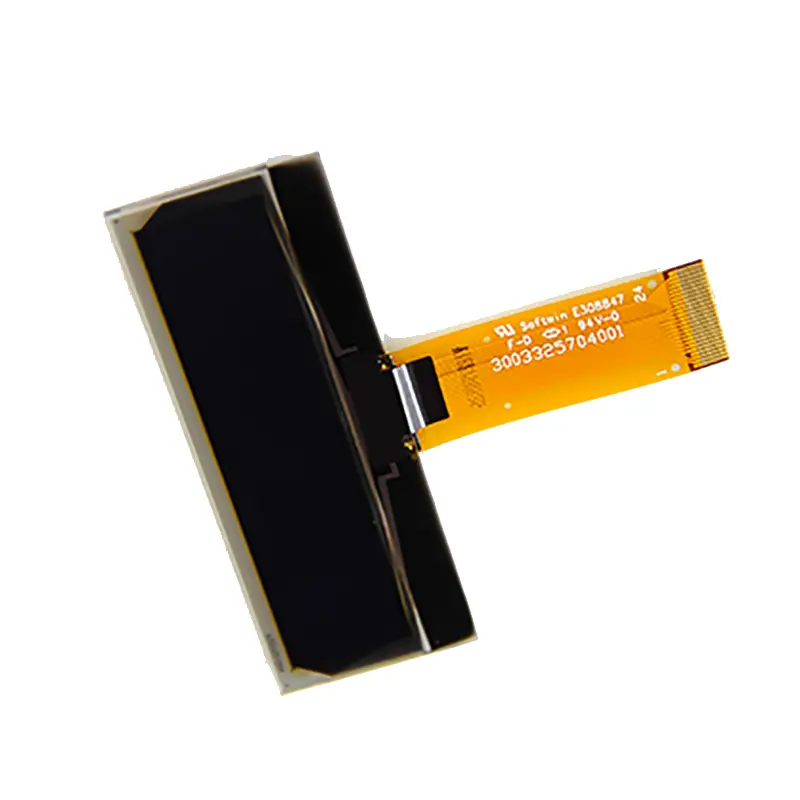

AT-PM223C-01R is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | PM | – | |
| Display color | WHITE （or YELLOW) | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+70℃ | ℃ | |
| Storage temperature | -40~+85℃ | ℃ | |

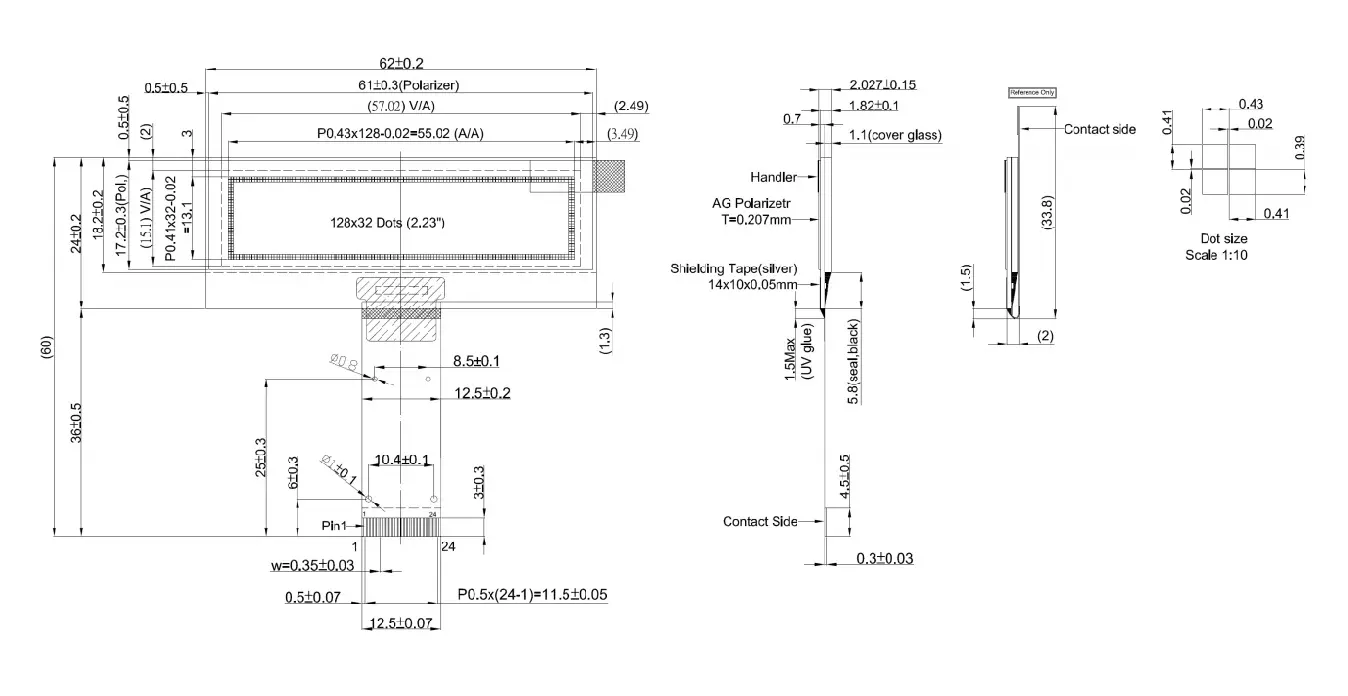

| Module size | 62(W)x60(H)x2.027(D) | mm | |
| Active Area(W×H) | 55.02(W)x13.1(H) | mm | |
| Number of Dots | 128 x 32 | dots | |
| Controller | SSD1305 | – | |
| Brightness | 180 | cd/m² | |
| Interface | MCU | – | |
| Connector | 24 | pins | customizable |
| Size | 2.23 |
| Resolution | 128×32 |
| A.A.(mm) | 55.02×13.1 |
| Outline (mm) | 62×24 |
| Interface | MCU |
| COLOR | W |
| IC | SSD1305 |
