Product name: 1.39 inch AMOLED
Model No.: AT-AM139M-03E
Display COLOR: 16.7M
Viewing Direction: IPS
Interface: MIPI/SPI
Controller: RM69330
Operating temperature: -20~+60℃
Brightness(cd/m²): 450 cd/m²
Touch Screen: With/without touch screen
Share to:

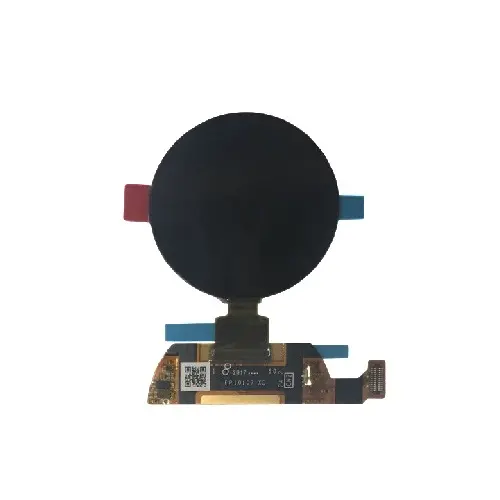

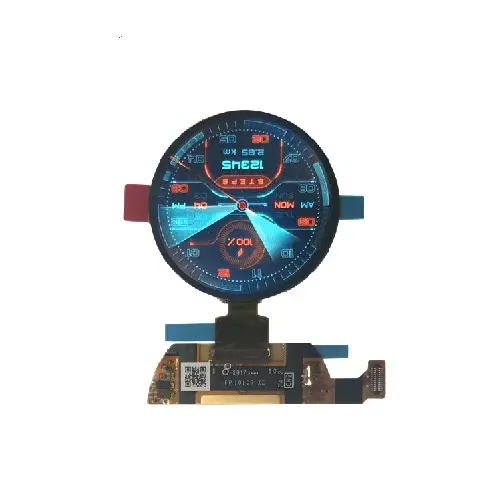

AT-AM139M-03E is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | AM | – | |
| Display color | 16.7M | ||
| Viewing Direction | IPS | O’Clock | |
| Operating temperature | -20 ~ 60 | ℃ | |
| Storage temperature | -30 ~ 70 | ℃ | |

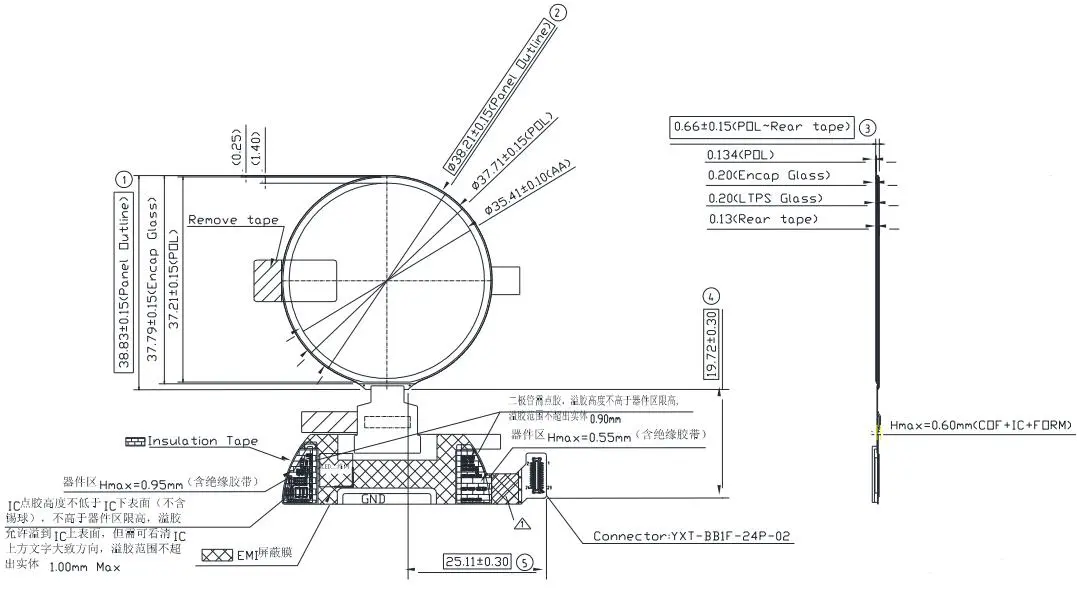

| Module size | 38.83X38.21X0.68 | mm | |
| Active Area(W×H) | 35.412(W)X35.412(H) | mm | |
| Number of Dots | 454*454 | dots | |
| Controller | RM69330 | – | |
| Brightness | 450 | cd/m² | |
| Interface | MIPI/SPI | – | |
| Connector | 24 | pins | customizable |
| Size | 1.39 |
| Resolution | 454×454 |
| COLOR | Full Color |
| A.A.(mm) | 35.412 |
| Outline (mm) | 38.83×38.21 |
| Interface | MPI |
| IC | RM69330 |
