AT-T028BQI-07
AT-T028BQI-07
AT-T028BQI-07 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 2.83″ display area contains 240 x (RGB) x 320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
Share to:
AT-T028BQI-07 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 2.83″ display area contains 240 x (RGB) x 320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 262K | ||
| Viewing Direction | IPS | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

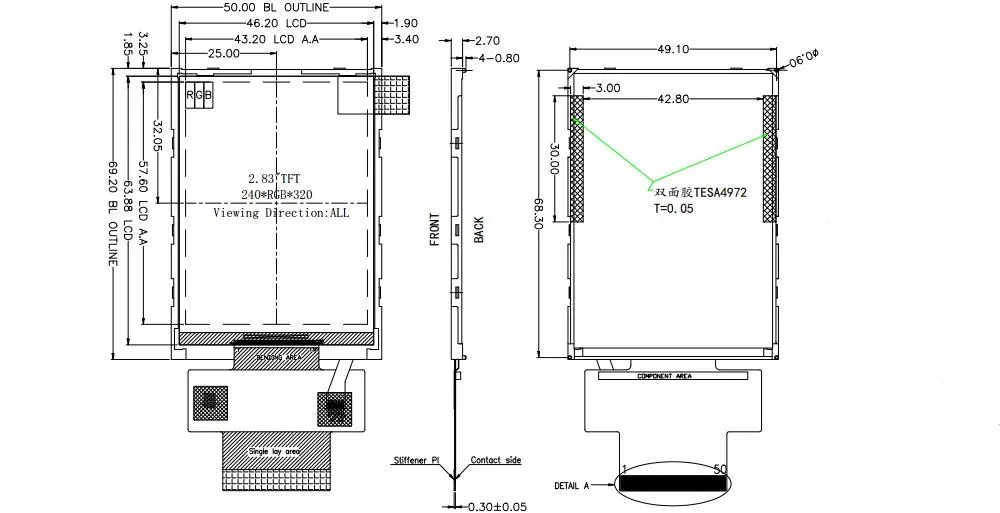

| Module size | 50.00X69.20X2.7 | mm | |
| Active Area(W×H) | 43.20(W)X57.60(H) | mm | |
| Number of Dots | 240*320 | dots | |
| LCM Controller | ILI9341V | – | |
| Backlight | 4 LEDs (white) | pcs | customizable |
| Brightness | 250 | cd/m² | customizable |
| Interface | MCU;RGB | – | |
| Connector | 50 | pins | customizable |
| Size | 2.8 |
| Resolution | 240*320 |
| Outline Size | 50.0*69.20 |
| Active Area | 43.20*57.60 |
| Driver IC | ILI9341V |
| Brightness | 250 |
| Interface | MCU/RGB |
| Viewing Angle | IPS |
