AT-T080AZH-02
AT-T080AZH-02
Product name: 8inch TFT LCD display
Model No.: AT-T080AZH-02
Display Type： TFT, IPS, Normally black
Viewing Direction： All
Interface： MIPI
LCM Controller： HX8297D
Operating temperature： -0~+50℃
Brightness(cd/m²)： 330cd/m²
Touch Screen： Without touch screen
Share to:
AT-T080AZH-02 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light. The 8.0″ display area contains 1200 x (RGB) x 1920 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -0~+50℃ | ℃ | |
| Storage temperature | -20~+60 | ℃ | |

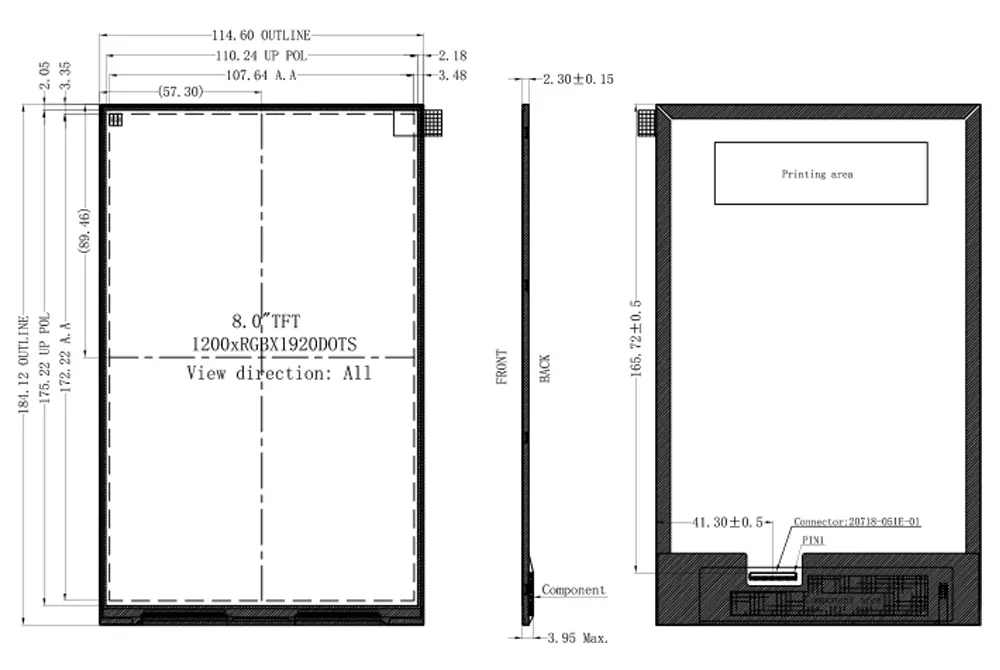

| Module size | 114.60X184.12X3.95max | mm | |
| Active Area(W×H) | 107.64(W)X172.22(H) | mm | |
| Number of Dots | 1200X1920 | dots | |
| LCM Controller | HX8297D | – | |
| Backlight | 24 | pcs | customizable |
| Brightness | 390 | cd/m² | customizable |
| Interface | MIPI | – | |
| Connector | 51 | pins | customizable |
| Size | 7 |
| Resolution | 1200*1920 |
| Outline Size | 114.6*184.12 |
| Active Area | 107.64*172.22 |
| Driver IC | HX8297D |
| Brightness | 390 |
| Interface | MIPI |
| Viewing Angle | IPS |
