Product name: 8inch TFT LCD display
Model No.: AT-T080SWH-02
Display Type TFT, TN
Viewing Direction 12 o’clock
Interface RGB
LCM Controller TBD
Operating temperature -20~+70℃
Brightness(cd/m²) 500cd/m²
Touch Screen Option
Share to:

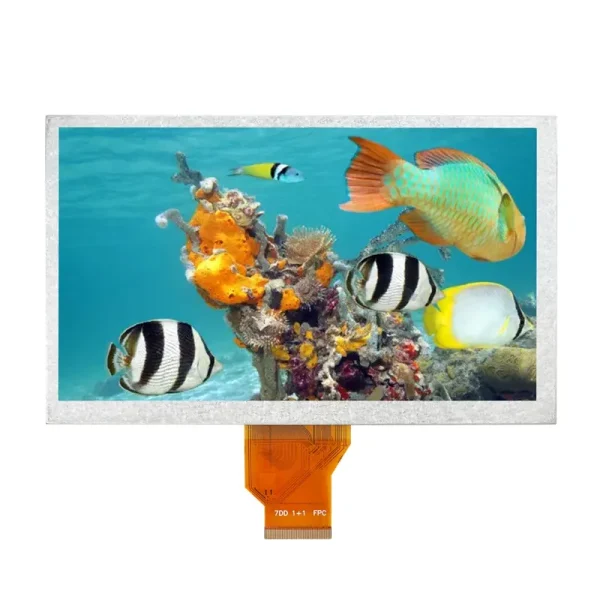

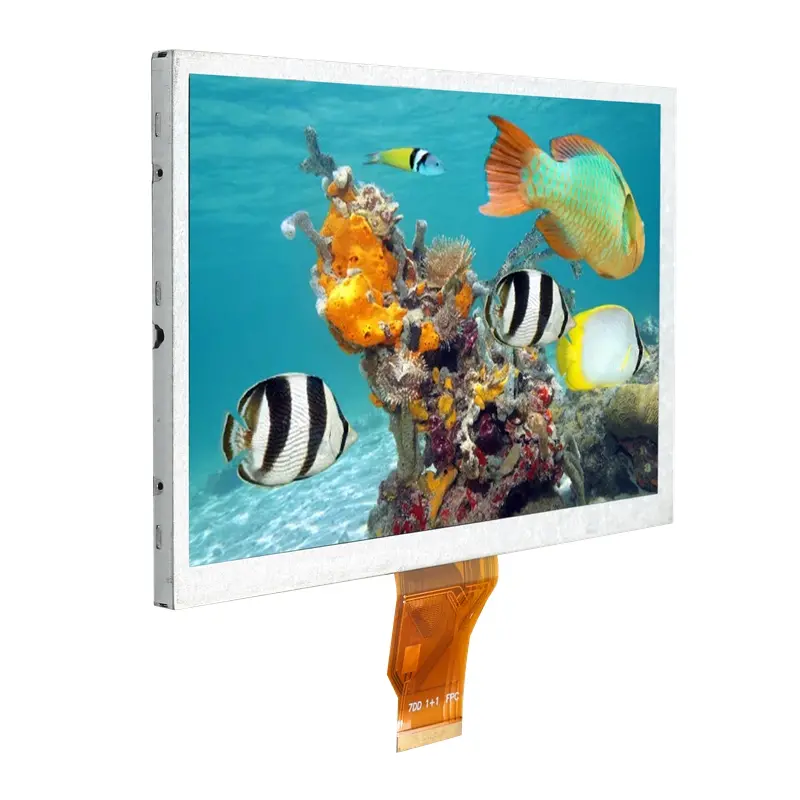

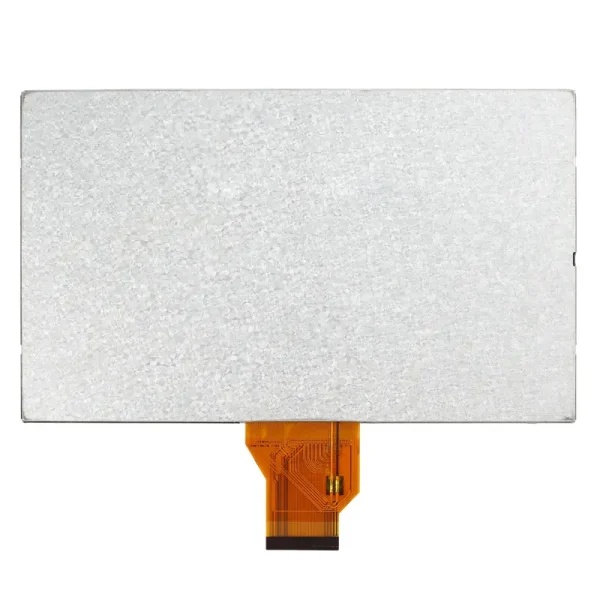

AT-T080SWH-02 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC and a back light. The 8.0″ display area contains 800×480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 16.7M | ||
| Viewing Direction | 12 o’clock | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 192.80X116.90X6.4 | mm | |
| Active Area(W×H) | 176.64X99.36 | mm | |
| Number of Dots | 800X480 | dots | |
| LCM Controller | TBD | – | |
| Backlight | 36 | pcs | customizable |
| Brightness | 500 | cd/m² | customizable |
| Interface | RGB | – | |
| Connector | 50 | pins | customizable |
| Size | 8 |
| Resolution | 800*480 |
| Outline Size | 192.8*116.9 |
| Active Area | 176.64X99.36 |
| Driver IC | N/A |
| Brightness | 500 |
| Interface | RGB |
| Viewing Angle | 12:00 o’clock |
