AT177SSTT-A220
AT177SSTT-A220
Model No.: AT177SSTT-A220
Display Type TFT, TN
Viewing Direction 12:00 O’Clock
Interface MCU-8bit
LCM Controller ST7735S
Operating temperature -20~+70℃
Brightness(cd/m²) 220cd/m²
Touch Screen Without touch screen
Share to:

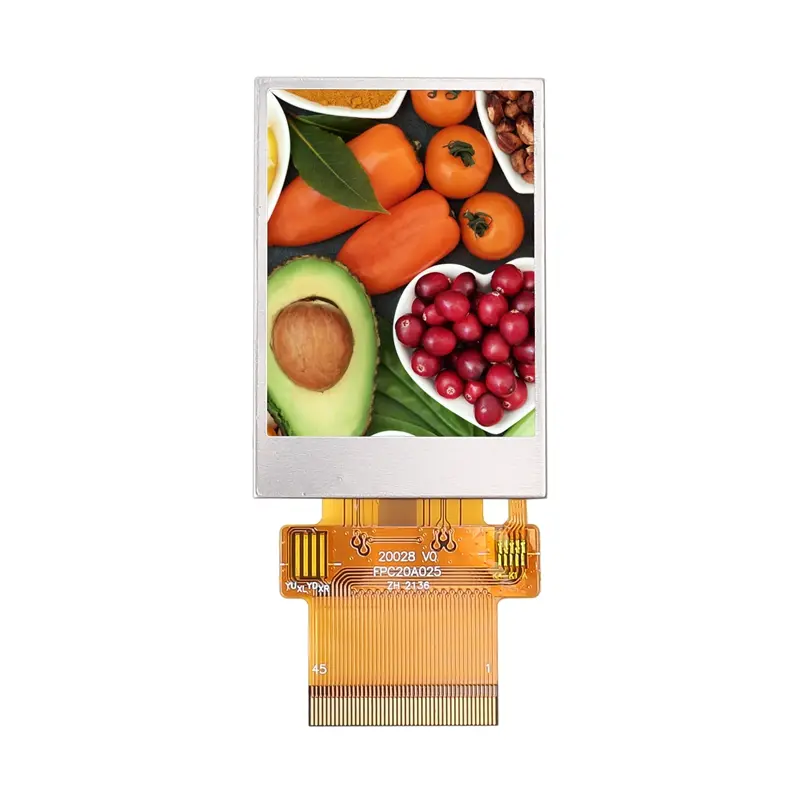

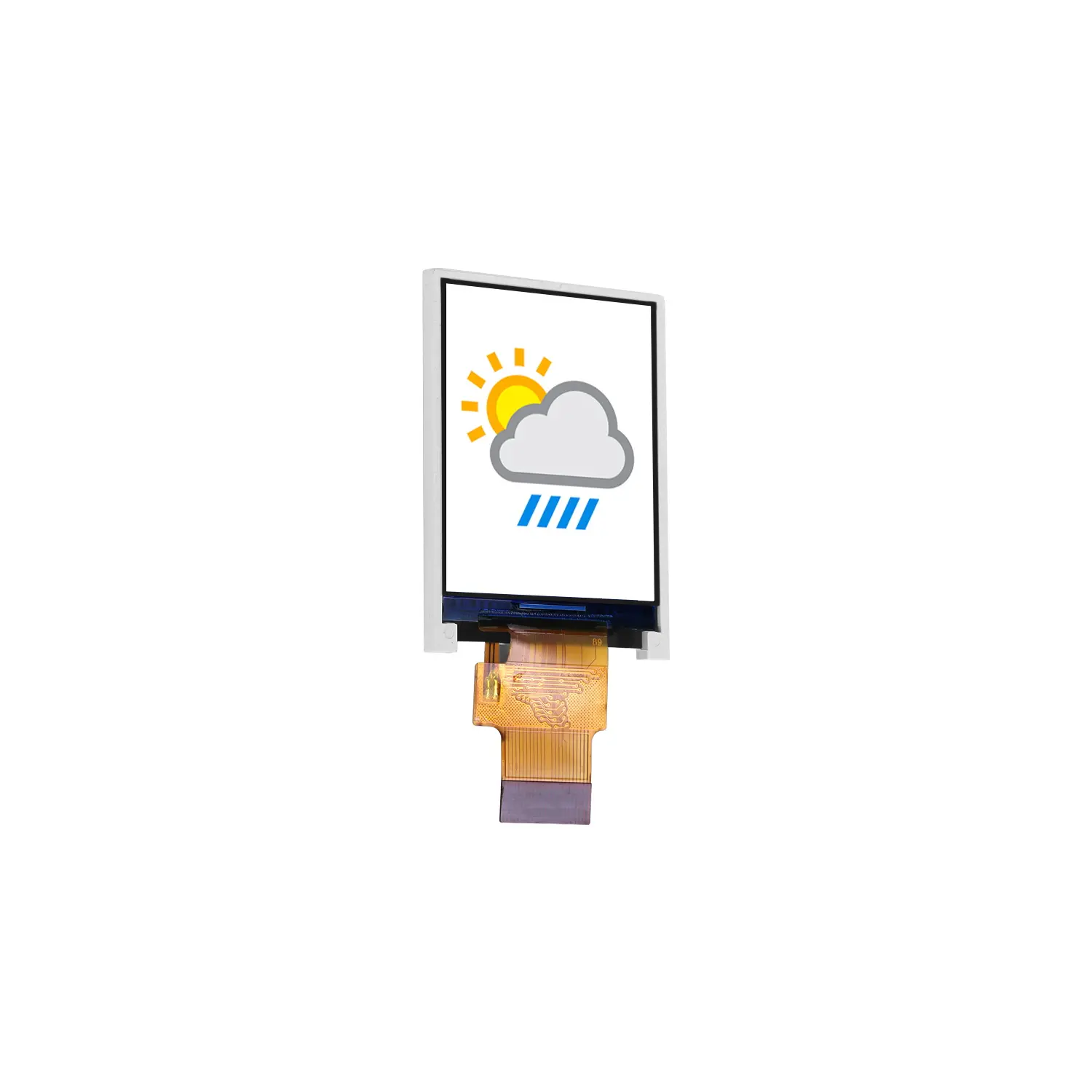

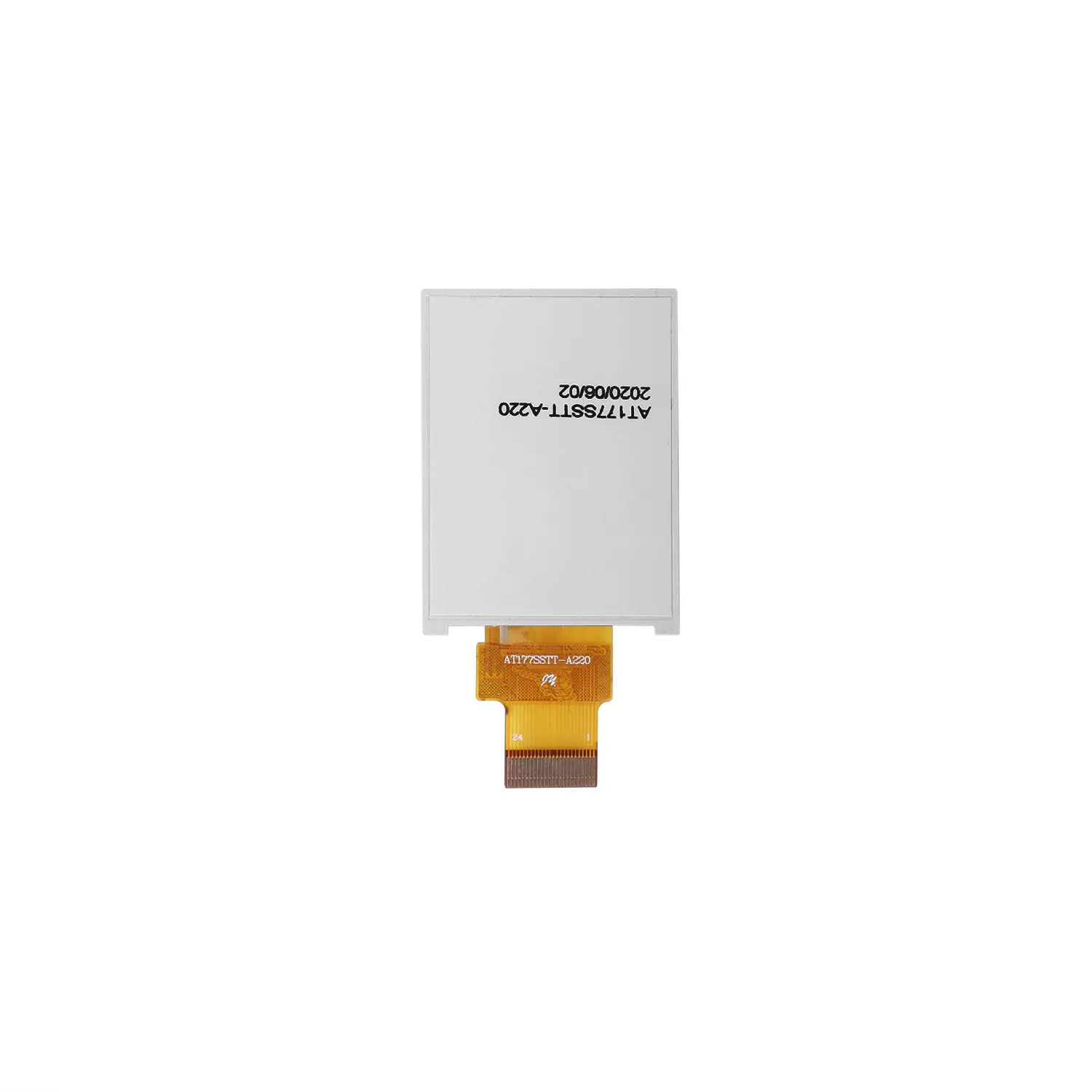

AT177SSTT-A220 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light. The 1.77″ display area contains 128 x (RGB) x 160 pixels and can display up to 65 K colors. This product accords with ROHS environmental criterion..
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 65K | ||
| Viewing Direction | 12:00 | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

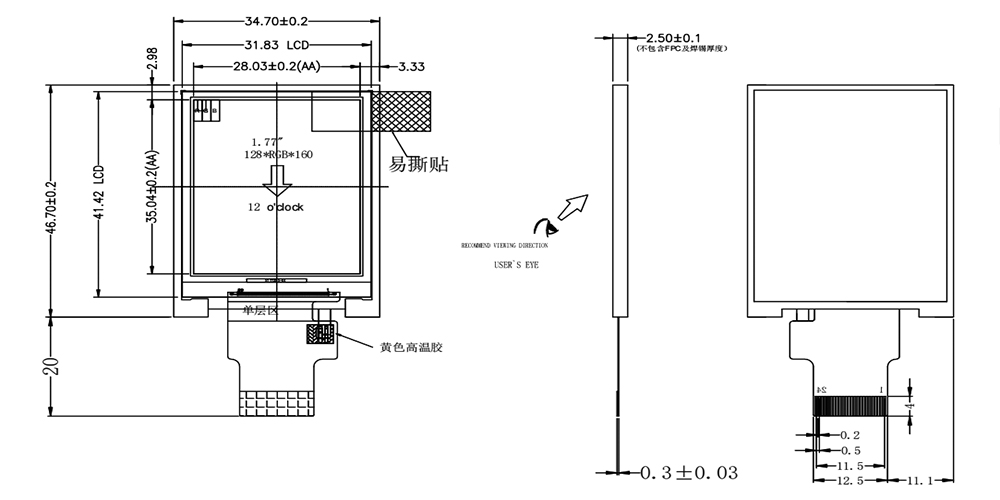

| Module size | 34.7*46.7*2.5 | mm | |
| Active Area(W×H) | 28.03*35.04 | mm | |
| Number of Dots | 128*160 | dots | |
| LCM Controller | ST7735S | – | |
| Backlight | 2-LEDs (white) | pcs | customizable |
| Brightness | 220 | cd/m² | customizable |
| Interface | MCU-8bit | – | |
| Connector | 24 | pins | customizable |
| Size | 1.77 |
| Resolution | 128×160 |
| Outline Size | 34.7×46.7 |
| Active Area | 28.03×35.04 |
| Driver IC | ST7735S |
| Brightness | 220 |
| Interface | MCU |
| Viewing Angle | 12:00 o’clock |
