AT-AM119M-01E
AT-AM119M-01E
Product name: 1.19 inch AMOLED
Model No.: AT-AM119M-01E
Display COLOR: 16.7M
Viewing Direction: IPS
Interface: MCU
Controller: RM69330
Operating temperature: -20~+60℃
Brightness(cd/m²): 350cd/m²
Touch Screen: With/without touch screen
Share to:
AT-AM119M-01E is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | AM | – | |
| Display color | 16.7M | ||
| Viewing Direction | IPS | O’Clock | |
| Operating temperature | -20 ~ 60 | ℃ | |
| Storage temperature | -30 ~ 70 | ℃ | |

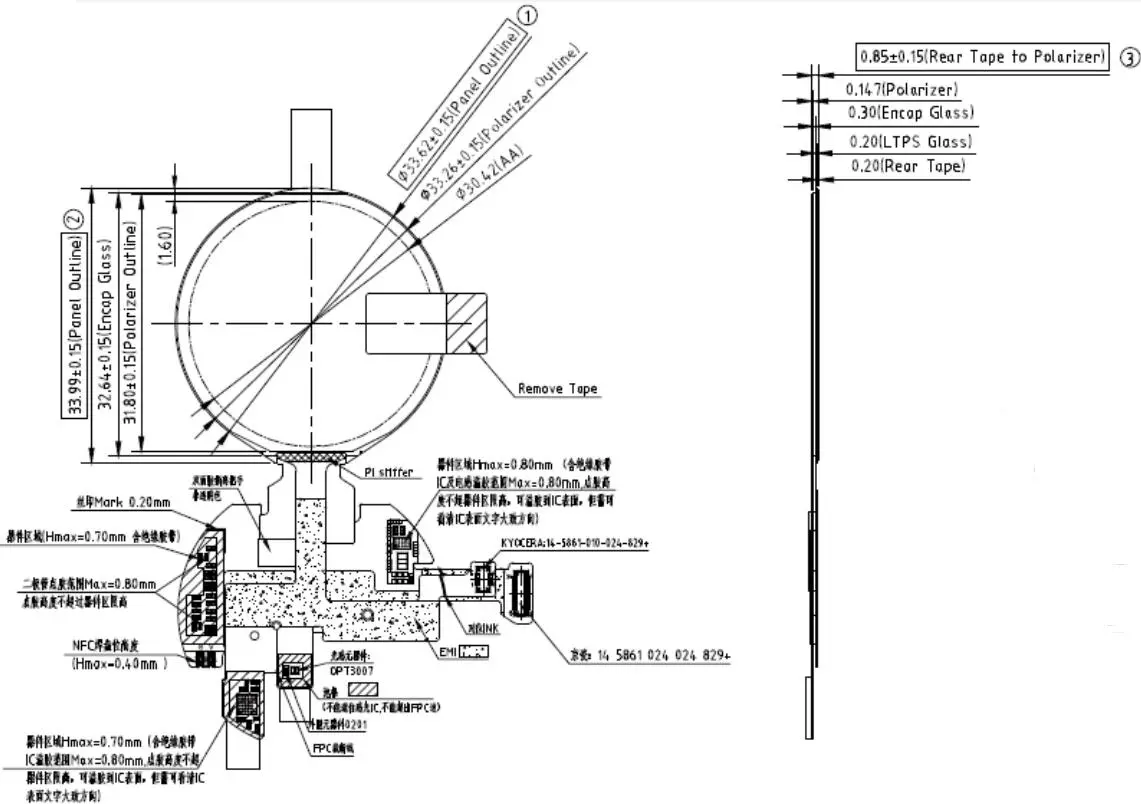

| Module size | 33.99X33.62X0.78 | mm | |
| Active Area(W×H) | 30.42(W)X30.42(H) | mm | |
| Number of Dots | 390*390 | dots | |
| Controller | RM69330 | – | |
| Brightness | 350 | cd/m² | |
| Interface | MIPI/SPI | – | |
| Connector | 24 | pins | customizable |
| Size | 1.19 |
| Resolution | 390×390 |
| A.A.(mm) | 30.42 |
| Outline (mm) | 33.99×33.62 |
| Interface | MIPI |
| COLOR | Full Color |
| IC | RM69330 |
