AT-AM269M-01B
AT-AM269M-01B
Product name: 2.69inch AMOLED
Model No.: AT-AM269M-01B
Display COLOR: Full Color/16.7M
Viewing Direction: All
Interface: MIPI
Controller: RM69700
Operating temperature: -40~+85℃
Brightness(cd/m²): 420cd/m²
Touch Screen: With touch screen
Share to:
AT-AM269M-01B is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | AM | – | |
| Display color | Full Color/16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -40~+85℃ | ℃ | |
| Storage temperature | -55~+125℃ | ℃ | |

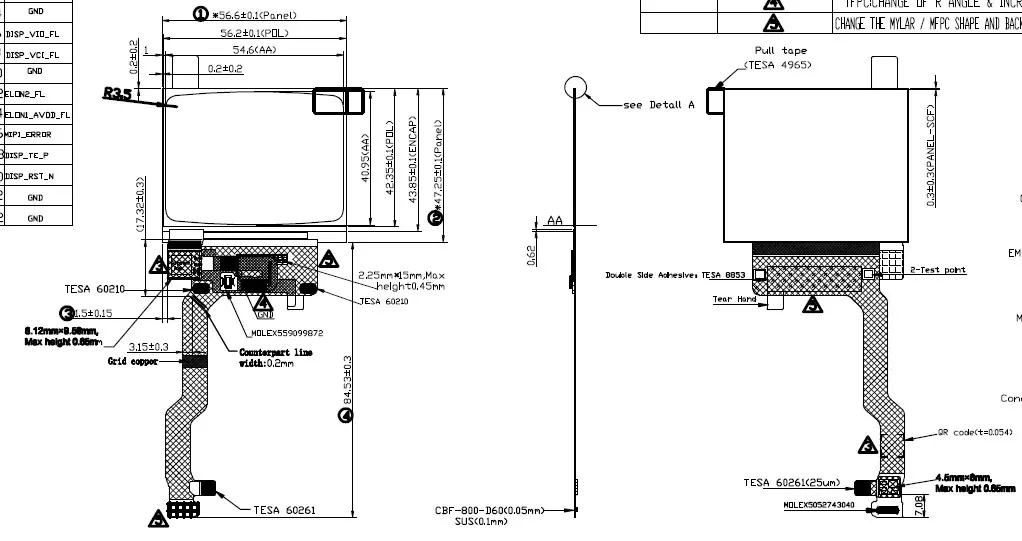

| Module size | 56.6X47.25X0.708 | mm | |
| Active Area(W×H) | 54.6(W)X40.95(H) | mm | |
| Number of Dots | 800*600 | dots | |
| Controller | RM69700 | – | |
| Brightness | 420 | cd/m² | |
| Interface | MIPI | – | |
| Connector | 30 | pins | customizable |
| Size | 2.69 |
| Resolution | 800×600 |
| COLOR | Full Color |
| A.A.(mm) | 54.6×40.95 |
| Outline (mm) | 56.6×47.25 |
| Interface | MIPI |
| IC | RM69700 |
