AT028SRTF-B300CP
AT028SRTF-B300CP
Product name: 2.8 inch TFT LCD Display
Model No.: AT028SRTF-B300CP
Display Type: TFT
Viewing Direction: 6:00 O’Clock
Interface: MCU
LCM Controller: ST7789V
Operating temperature: -20~70
Brightness(cd/m²): 300
Touch Screen: /
Share to:

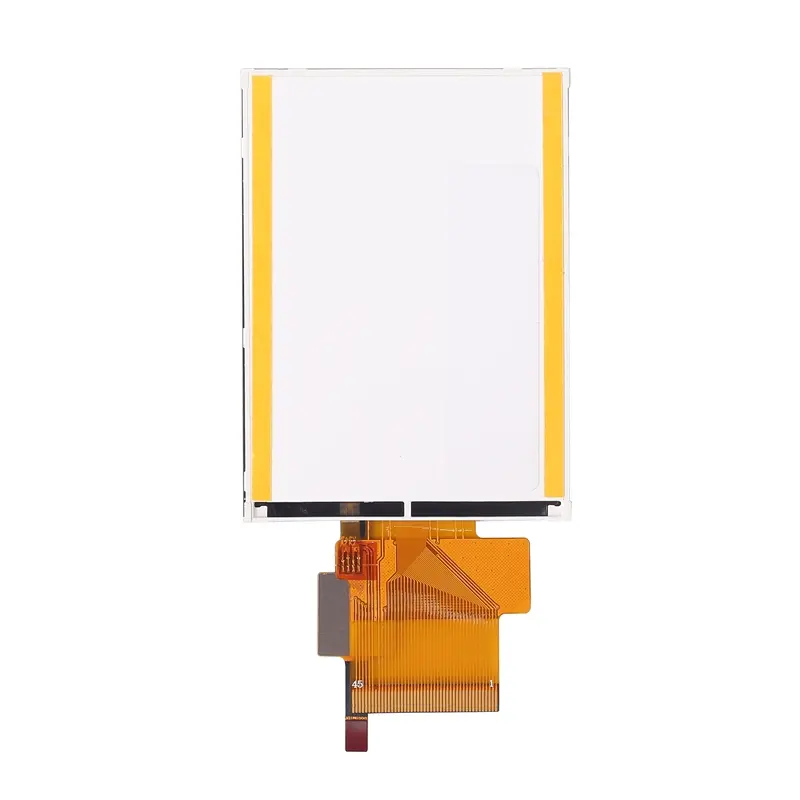

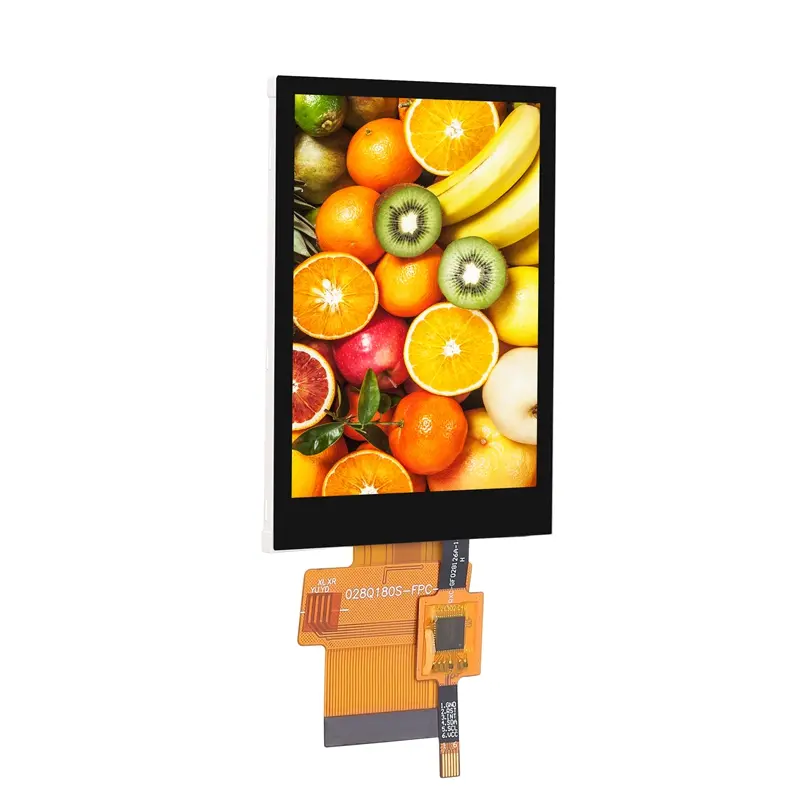

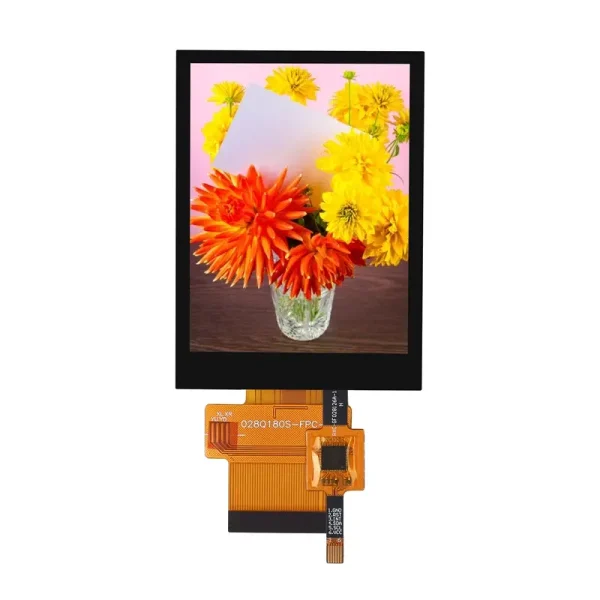

AT028SRTF-B300CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight. The 2.8″ display area contains 240 x 320 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| LCD Type | TFT | – | |
| Display color | 2.8 | ||
| Viewing Direction | 6:00 | O’Clock | |
| Operating temperature | -20~70 | ℃ | |
| Storage temperature | -30~80 | ℃ | |

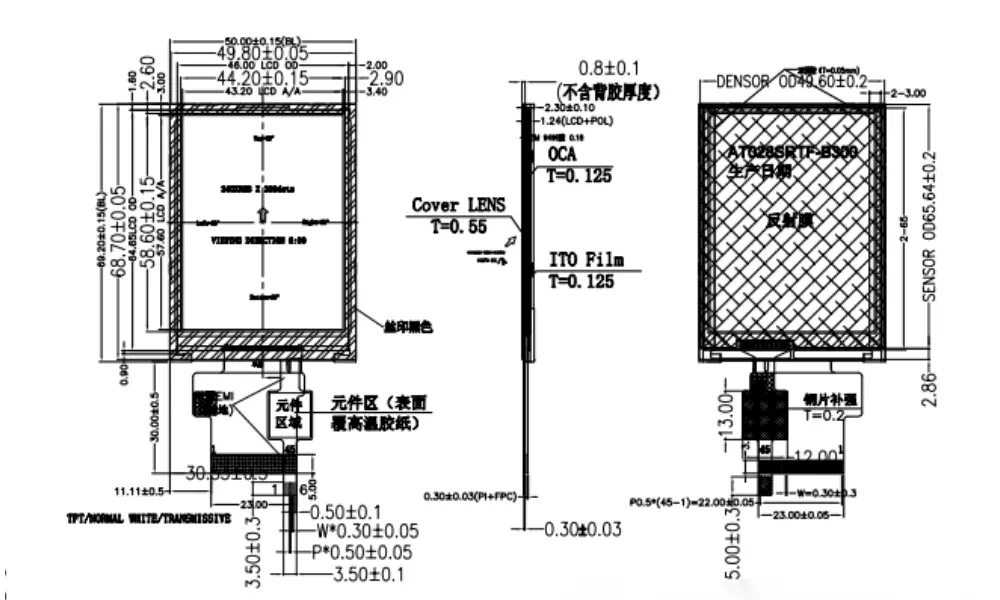

| Module size | 50×69.2×2.3 | mm | |
| Active Area(W×H) | 43.2（H)×57.6（V) | mm | |
| Number of Dots | 240×320 | dots | |
| LCM Controller | ST7789V | – | |
| Backlight | LED | pcs | customizable |
| Brightness | 300 | cd/m² | customizable |
| Interface | MCU | – | customizable |
| Connector | 45 | pins | customizable |
| Size | 2.8 |
| Resolution | 240*320 |
| Outline Size | 50*269.2 |
| Active Area | 43.2 *57.6 |
| Driver IC | ST7789V |
| Brightness | 300 |
| Interface | MCU |
| Viewing Angle | IPS |
