AT-AM141M-01E
AT-AM141M-01E
Product name: 1.41inch AMOLED
Model No.: AT-AM141M-01E
Display COLOR: 16.7M
Viewing Direction: All
Interface: MIPI
Controller: RM67162/ZTW522
Operating temperature: -20~+70℃
Brightness(cd/m²): 350cd/m²
Touch Screen: With touch screen
Share to:
AT-AM141M-01E is a OLED module. It is composed of a OLED panel, driver IC and FPC unit,this product accords with ROHS environmental criterion.
| Item | Contents | Unit | Note |
| OLED Type | AMOLED | – | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -40~+80 | ℃ | |

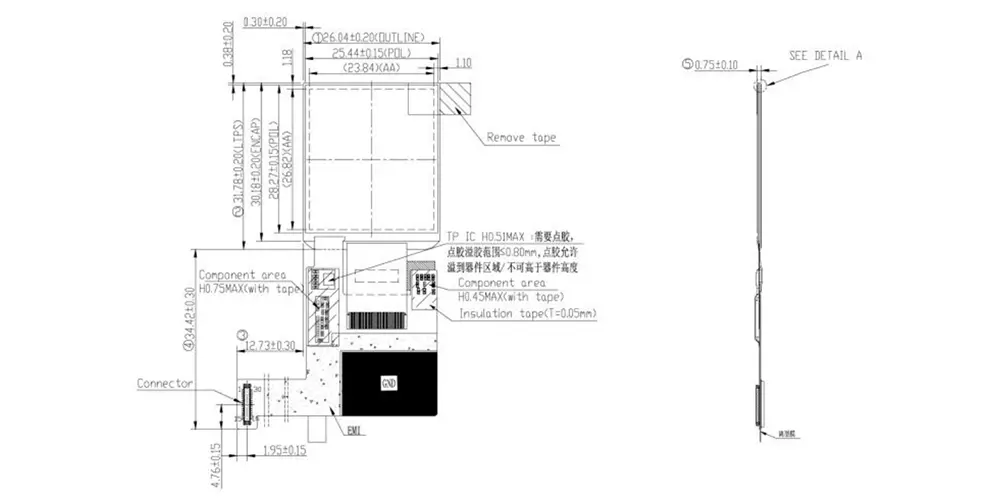

| Module size | 26.04*31.78 | mm | |
| Active Area(W×H) | 23.84*26.82 | mm | |
| Number of Dots | 320*360 | dots | |
| Controller | RM67162/ZTW522 | – | |
| Brightness | 350 | cd/m² | |
| Interface | MIPI | – | |
| Connector | 30 | pins | customizable |
| Size | 1.41 |
| Resolution | 320×360 |
| COLOR | Full Color |
| A.A.(mm) | 23.84×26.82 |
| Outline (mm) | 26.04×31.78 |
| Interface | MIPI |
| IC | RM67162 |
